Solar Tile Roof Hooks adjust tile roof hooks

Tile Roof Mounting is suitable for all the solar mould on pitched tile roof, it can install for commercial and residential roof solar system just need some standard components: Aluminum rail profile, solar tile hook and solar clamp and some others little solar mounting accessories.

Lead Time: within 15days Product Origin: China Shipping Port: Xiamen Port, China Payment: TT, LC Color: Nature Installation Site: Pitch tile roof Material: Alu6005+SS304 Surface: Anodized Tilt Angle: As per roof Max Wind Speed: 60m/s Snow Load: 1.4KN/m²

Pitched Tile Roof Mounting is suitable for installing framed or frameless modules flushed to pitch roof. Special design and pre-assembled clamp make installation easy, as follow are some advantage:

Feature:

Light Weight, Convenient and Durable.
Install Site: Pitch Tile Roof
Max Building Height: Up to 20m(≈65ft).
Max Wind Speed: 60 m/s
Snow Load: 1.4 KN/m²
Material: Aluminum 6005-T5 & Stainless Steel 304
Warranty: 15 years warranty; 25 years service life.

Installation Guide:

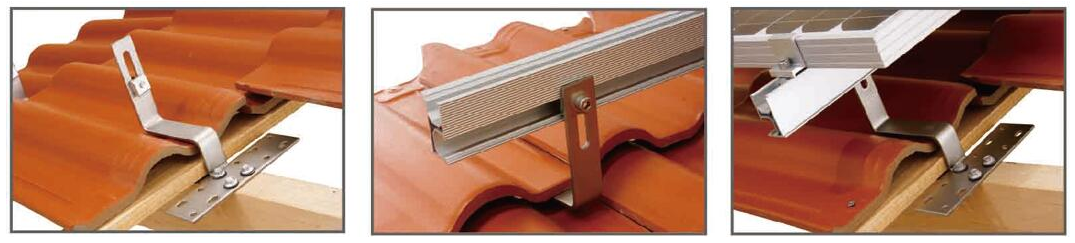

Step 1: Remove tile and fix tile hook on beam by M6.3 x 80mm wood screw.

Step 2: Fix solar rail on tile hook and lock tightly by M8x25mm T module set.

Step 3: Put solar panel on rail and fix with inter clamp or end clamp until finished.

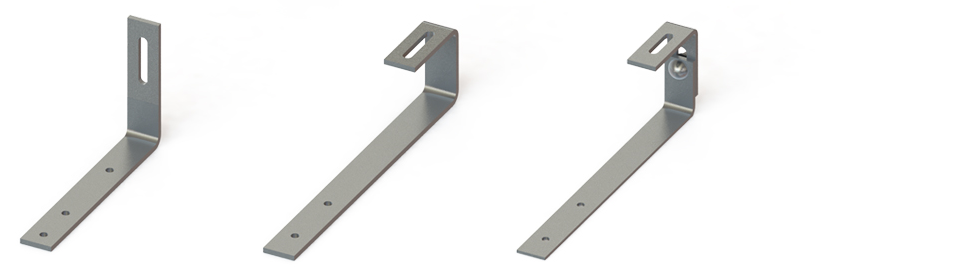

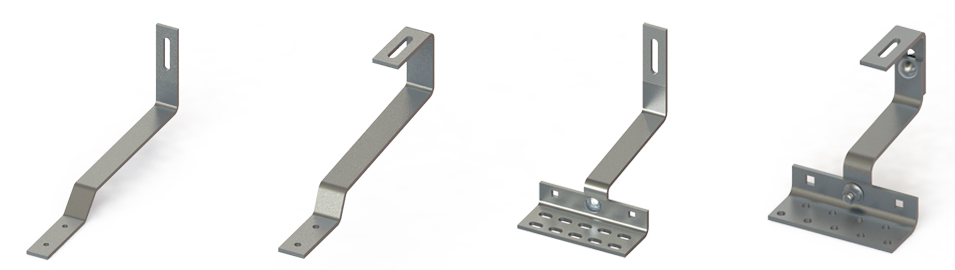

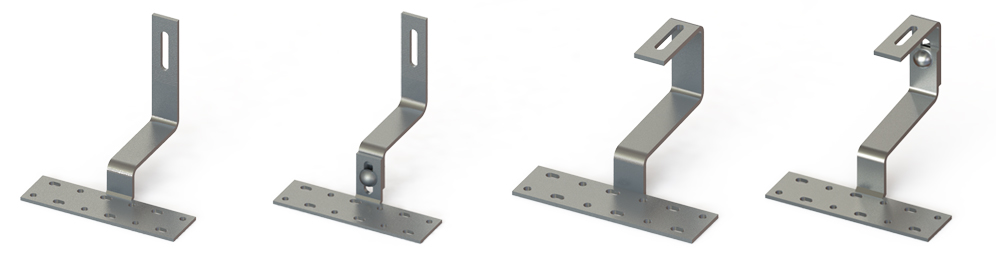

Hooks can choose just you like

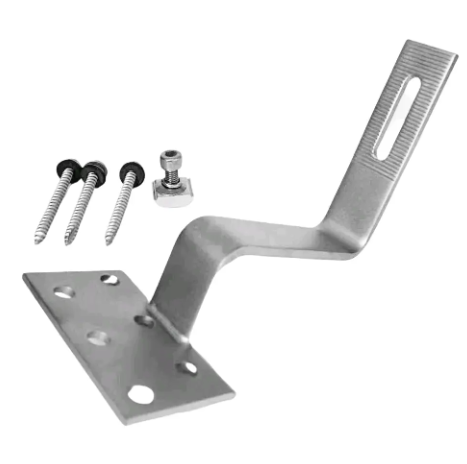

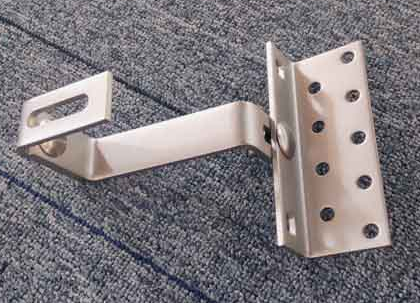

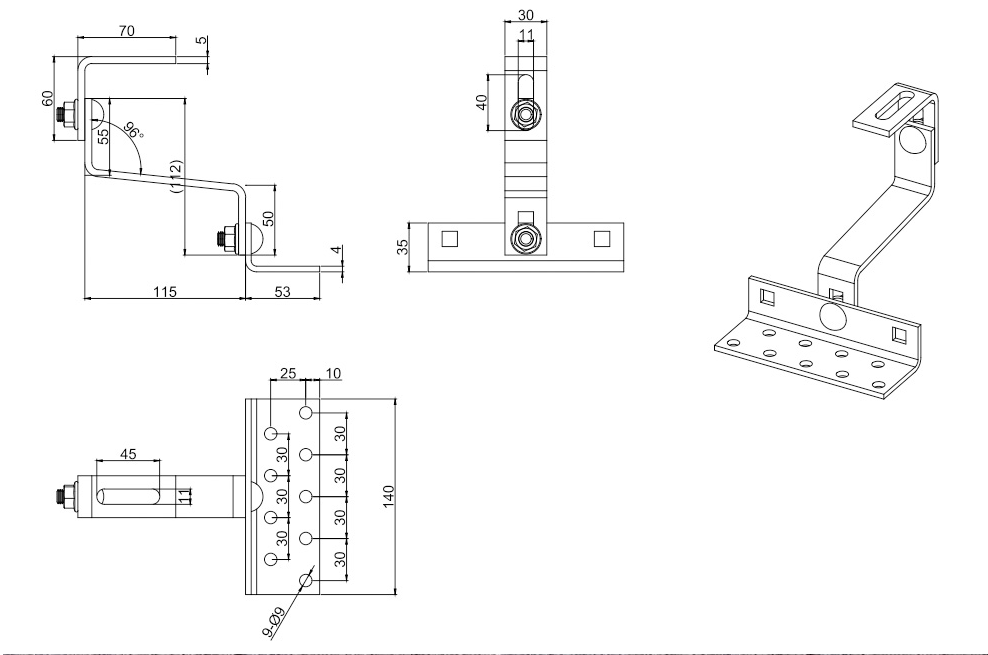

Stainless Steel 304 Adjustable Double Flat Tile Hook

Double adjustable height flat tile hooks are more convenient for those pan tile style roofs that require individual adjustments.

• Lead Time:

  Within 15days after payment.

• Product Origin:

  China

• Shipping Port:

  Xiamen Port, China

• Payment:

  TT, LC

• Min Order:

  1000

• Color:

  Nature

• Material:

  SUS304

• Surface:

  Clean

Adjustable double flat tile hook provide a fast and easy way to install solar on tile roofs. The solar tile hook is made by stainless steel 304/ Grade 1.4301, tile arm and base thickness can customized as per your request.

-It's meeting for different types of PV solar panels
-It's made from high quality SUS304, A2-70 material
-Easy and fast installation
-No need to drill into tile
-Slotted for easy adjustment

-Double adjustable
