Adjustable Metal Roof Mounting

 angle of the solar system is adjustable, the adjustable degree is 15~30 degree.

Shipping Port:

Xiamen Port

Delivery Time:

7-15 Days

Installation Site:

Metal Roof

Max Wind Speed:

Up to 60m/s

Snow Load:

Up to 1.4KN/m²

Material:

Aluminum

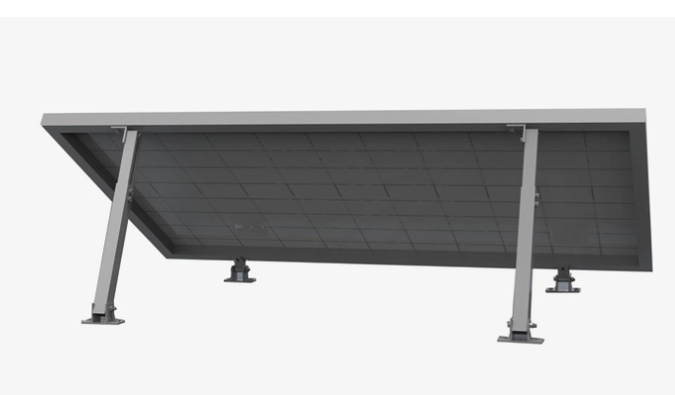

Adjustable solar bracket can be installed individually for one solar panel.

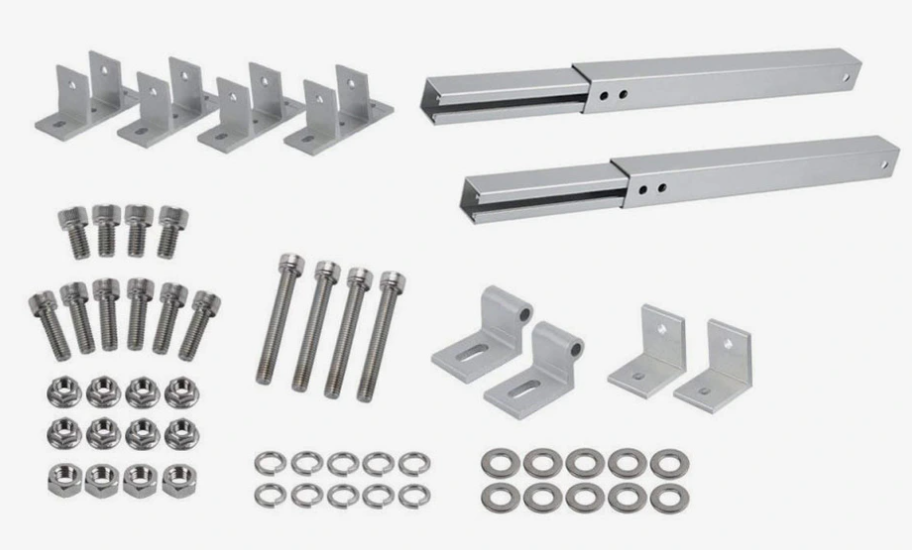

COMPONENT LIST

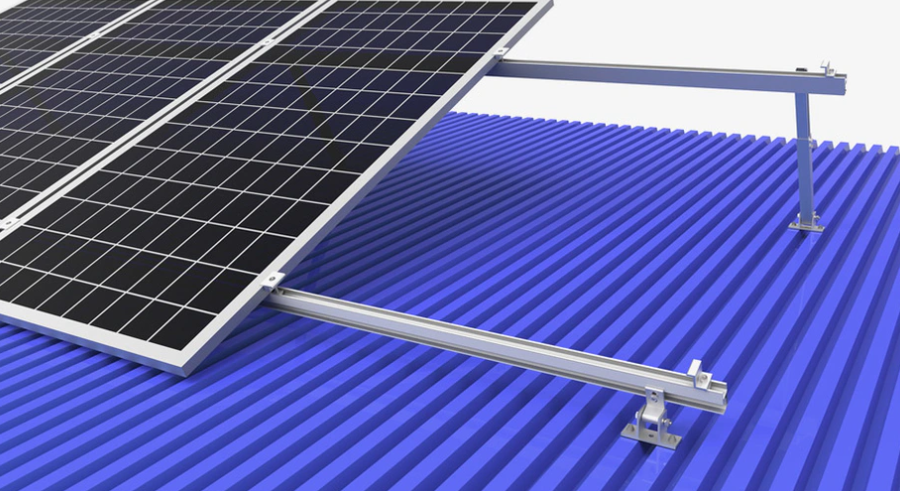

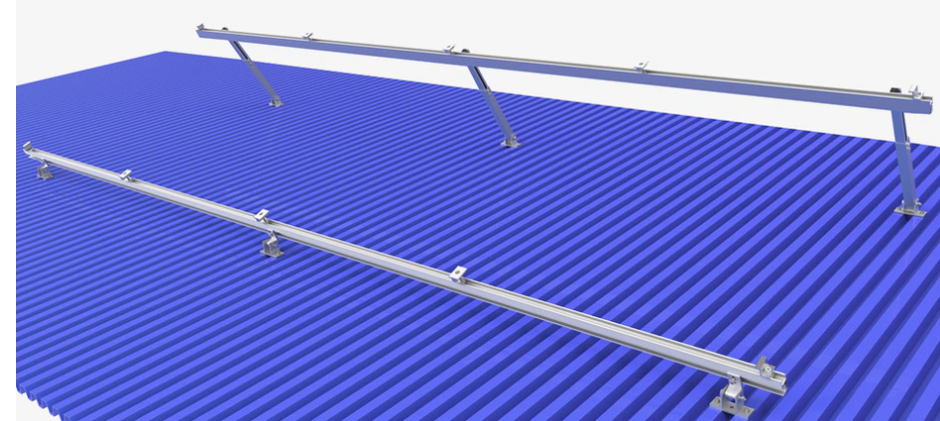

adjustable solar mounting brackets are used for metal roof or concrete roof, it is easy to install. The angle is adjustable according to customers’ requirement.

Panel Orientation	Landscape/Portrait
Tile Angle	15~30 degree
Max Wind Speed	Up to 60 m/s
Snow Load	Up to 1.4kn/m2
Main Material	Aluminum & Stainless Steel
Anti-corrosive	Anodized

◆ Adjustable Degree

◆ Easy To Install

◆ Flexibility and Compatible

◆ Stand Up To Extreme Weather

◆ Water-proof EPDM Rubber Pad

THE ABOVE JUST SOME ITEM,FOR MORE,PLS CONTACT WITH US,TKS!

：-Solar Metal Roof Mounting

：-Non Rail Metal Roof Mounting
