Adjustable Solar Panel Tilt Mount Roof Ground Mounting Rack Bracket Set Rack RV

：Adjustable Solar Panel Mounting Bracket

290*556*556mm

375*712*712mm

545*1040*1040mm

6X bolts, nuts and washers

4X M6*25 SUS304 bolts and nuts to connect the solar panel

Model Number	TP-TR
Wind Load	60m/s
Snow Load	1.4kn/m2
Warranty	10years
Product name	solar roof rack
Material	Aluminum
Surface Treatment	Andoized
Color	Natural or black
Length	556mm, 712mm or 1040mm
Duration	25 Years
Installation Site	roof, rv or other flat surface
Solar panel	framed solar panel
Packing	1set/carton
MOQ	1set

Supply Ability

10000 Set/Sets per Day

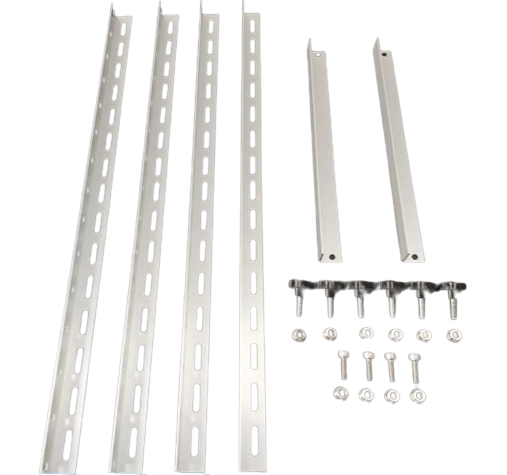

1 set/carton, include the below

								4 pcs long brackets

									2 pcs short brackets

									6 pcs

									torx screw

									4 pcs bolt

									12 pcs bolt nuts

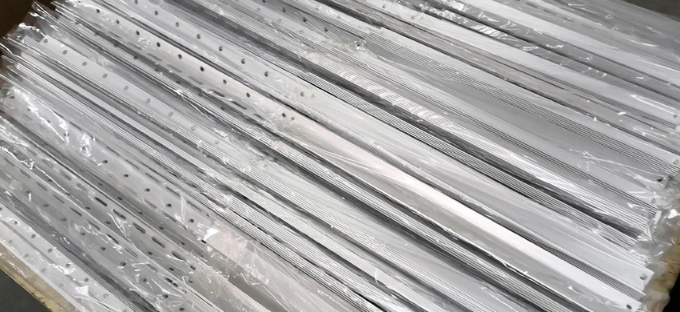

									Inner packing: use plastic bag to protect
　
Our products is solar mounting system,
									such as solar floating system, solar carport
									system, solar ground system, solar roof
									system, solar RV system and so on. We have
									roughly 500 workers in our own holding
									factory. TOTAL 10 EXPORT department, develop
									team, 3 for Quality team, and the rest ones
									for production team, material purchasing,
									and some internal work.

									As long as you put forward your
									requirements, our team will give you a
									solution. provide the drawing of mounting
									structure and customized service.
