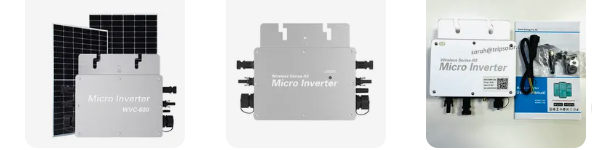

Micro Solar Inverter R3

Product Description

model	WVC-600(R3)
Maximum input power	2*375W
Output voltage mode	120V/230V automatic switching
Solar panel open circuit voltage range	30-60V
Peak power tracking voltage	22-60V
Min/Max starting voltage	22-60V
Maximum DC short circuit current	30A
Maximum input working current	24A
Output parameters	@120V	@230V
Peak output power	630Watt	630Watt
Rated output power	600Watt	600Watt
Rated output current	5A	2.6A
Rated voltage range	80-160VAC	180-280VAC
Rated frequency range	48-51Hz/58-61Hz	48-51Hz/58-61Hz
Power Factor	>99%	>99%
Number of circuit connections per string	6 sets (single phase)	12 sets (single phase)
Output efficiency	@120V	@230V
Static MPPT efficiency	99.5%	99.5%
Maximum output efficiency	95%	95%
Power loss at night	<1w	<1w
Total harmonic distortion	<5%	<5%
Appearance and technical characteristics
range of working temperature	-40 ℃ to +65 ℃
Size(mm)	28320042
net weight	1.56kg
waterproof level	IP65
Cooling method	Self-cooling

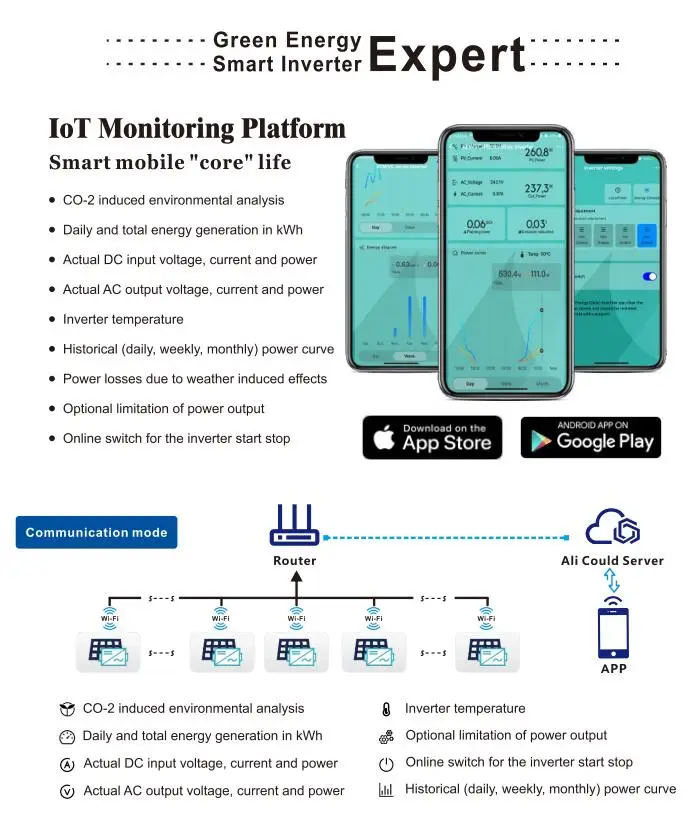

Communication mode	433Mhz communication mode
Power transmission mode	Reverse transmission, load priority
surveillance system	Mobile App, Browser
Electromagnetic Compatibility	EN50081.Party EN50082.Party 1
Grid disturbance	EN61000-3-2 Safety Regulation 62109
Grid detection	DIN VDE 0126
certificate	CE, CEC, appearance patent
Package weight
specification	Single (packaging)	FCL (15 units)
Gross weight	2.2Kg	14.5Kg
Size(mm)	342375140	440380260

WVC-300	300watt	Suitable for 1*375watt	MC4: 1SET
WVC-350	350watt	Suitable for 1*430watt	MC4: 1SET
WVC-600	600watt	Suitable for 2*375watt	MC4: 2SET
WVC-700	700watt	Suitable for 2*430watt	MC4: 2SET
WVC-800	800watt	Suitable for 2*440watt	MC4: 2SET
WVC-1200	1200watt	Suitable for 4*375watt	MC4: 4SET
WVC-1400	1400watt	Suitable for 4*430watt	MC4: 4SET
WVC-1600	1600watt	Suitable for 4*500watt	MC4: 4SET
WVC-2000	2000watt	Suitable for 4*625watt	MC4: 4SET
WVC-2400	2400watt	Suitable for 4*750watt	MC4: 4SET
WVC-2800	2800watt	Suitable for 4*875watt	MC4: 4SET

Packing & Delivery


													each set is 342*375*140mm,
													2.2kgs

Output Type

Single

Type

DC/AC Inverters

Inverter Efficiency

95%

Other attributes

Place of Origin

Fujian, China

Model Number

WVC-600

Input Voltage

22-60Vdc

Output Voltage

120V/230V

Output Current

2.6A-5A

Output Frequency

48-51HZ/58-61HZ

Size

283*200*41.6mm

Certificate

CE CEC ETL

Warranty

5 years

Weight

2.2

Maximum input power

2*375W

Output voltage mode

120V/230V automatic switching

Solar panel open circuit voltage range

30-60V

Peak power tracking voltage

22-60V

Min/Max starting voltage

22-60V

Maximum DC short circuit current

30A

Maximum input working current

24A

range of working temperature

-40 ℃ to +65 ℃

Size(mm)

283*200*42

Cooling method

Self-cooling
